Fallbrook Shopping center

22855 Victory Blvd, West Hills, CA 91307, USA

Roof assessment test for solar array layout

The images were captured on May 21, 2019 using DJI Phantom 4 Pro and Inspire 2 with X7 camera without utilizing ground control points.

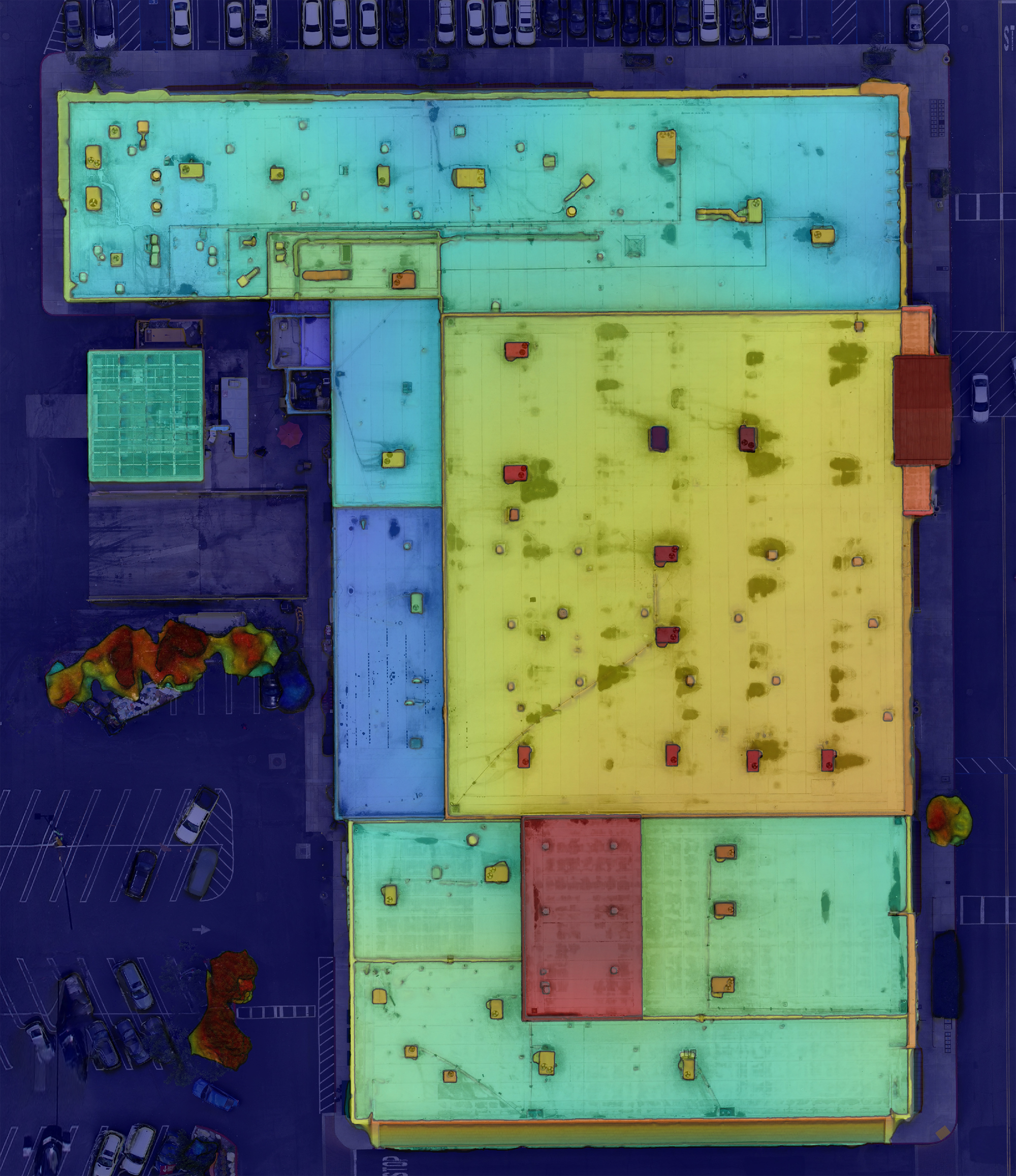

Building 8, elevation map shows various levels from blue (low) to red (high). Click for larger view.

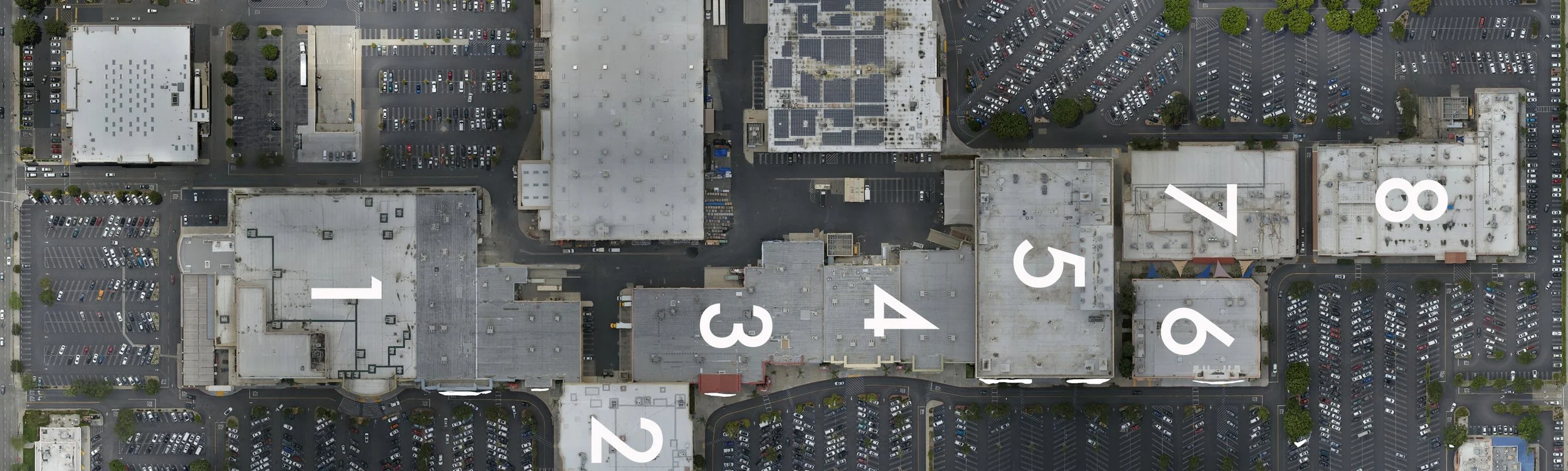

One flight captured the entire area from 350ft Above Ground Level (AGL). The other eight flights were conducted at about 130ft AGL and mapped each rooftop separately as indicated on the overall image above.

The entire operation required 3hrs on site, while capturing about 1900 images.

Photographs were processed by DroneDeploy software and are available for delivery in the following formats:

  • Orthomosaic - JPEG, geoTIFF, PDF

  • Elevations & Contours - DEM, AutoCAD, Shapefile

  • 3D model - OBJ

  • Point Cloud - LAS, XYZ

Building8, example of annotations used in DroneDeploy - (to access all features, paid subscription is required)

Building8, example of annotations used in DroneDeploy - (to access all features, paid subscription is required)

Building7 with edge measurement overlay. Click for a full report on this building.

Building7 with edge measurement overlay. Click for a full report on this building.

Building7 with measurement & elevation overlays (red - high, blue - low elevation)

Building7 with measurement & elevation overlays (red - high, blue - low elevation)


Click on each image below to access the DroneDeploy site and view 3D models and full resolution orthomosaic maps.
